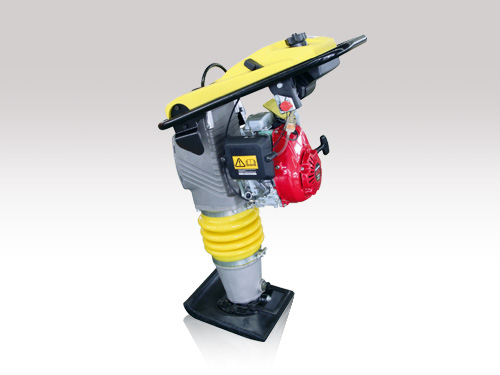

        Product Name:Rammer HCR70A

        - Most ideal for finishing asphalt,sand and sloping surfaces;
        - Holding handle and trolley,easy to use and transport;
        - Base plate with self-cleaning function;
        - Innovation Design.

        STRUCTURE:
        The torque generated by engine or electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot (shoe) through spring cylinder.
        FEATURES:
        It has strong impact force though it is small and light.
        Multipurpose use with maneuverability.They are used for confined area, trench work, backfill and repairing work on asphalt.
        Suitable especially for compacting the roadbed with low water content that heavy vibro compactor could not work.

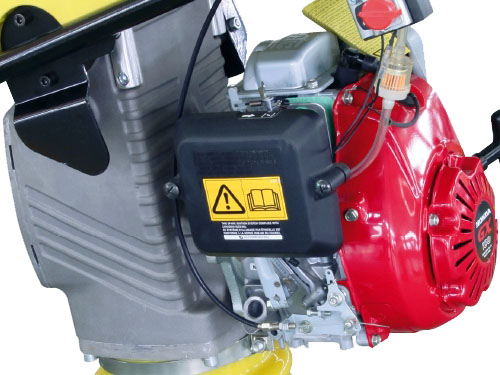

        Tamping rammer with  Honda engine ,Robin engine and Cinese engine

        The main technical parameters

        Model

        HCR70A

        HCR70A-1

        HCR70

        HCR70B

        Impact Number (number/min)

        700

        1700

        700

        700

        Leep Height (mm)

        65

        65

        65

        70

        Power (kw/r/min)

        2.2/4000

        2.2/4000

        1.8/4400

        2.6/3600

        Net Weight (Kg)

        75

        75

        70

        80

        Package Dimension (mm)

        1080×410×750

        1080×410×750

        1080×410×750

        1080×410×750

        Mating Power

        HONDA GX100

        156FC

        1E45F-3(Two Stroke)

        Robin EH-12D

        Impact Energy (Kn)

        15

        15

        14

        16

        Walking Speed (m/min)

        17

        17

        17

        17

        Base Dimension (mm)

        280×335

        280×335

        280×335

        280×335

        Gross Weight (Kg)

        92

        92

        87

        100
