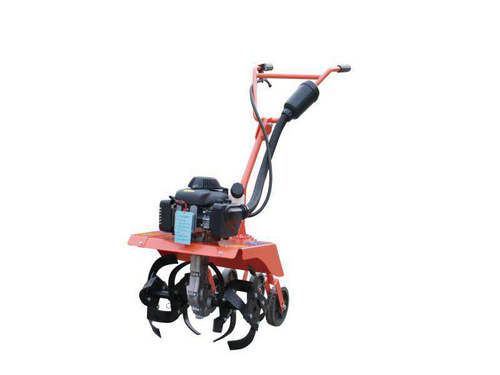

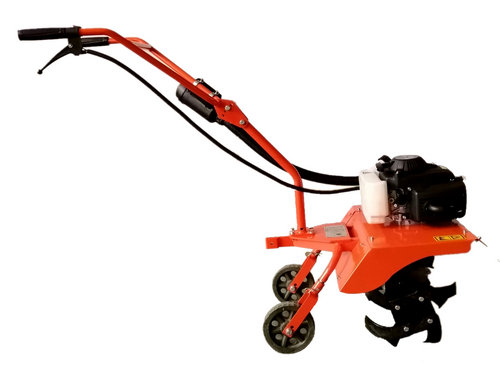

型號名稱 Model | 1WG1.5-40微型耕耘機 Mini Tiller 1WG1.5-40 |
結構型式 Structural type | 前置式 Front Tine tiller |
發動型號名稱 Engine Type | 144F-1型汽油機 gasoline engine 144F-1 |
發動生產企業 Engine Manufacturer | 山東華盛中天工程機械有限責任公司 Shandong Huasheng Zhongtian Engineering Machinery Co.,Ltd |
發動標定功率kW Rated Power(kW) | 1.5 |
發動標定轉速r/min Rated speed(r/min) | 6800 |
發動起動方式Starting method | 反沖啟動Recoil Starter |
發動燃油種類Fuel type | 92#及以上汽油 gasoline 92# and above grade |
整機外形尺寸（長×寬×高）mm Dimension(length×width×height) | 1290×470×830 |
作業速度m/s operating speed | 0.15～0.25 |
扶把振動 m/s2 Vibration of the handlebar | ≤15 |
作業小時生產率hm2/(h·m) Operating productivity | 0.06-0.10 |
單位作業面積燃油消耗量kg/hm2 Fuel Consumption of the unit operating area | 15-28 |
工作幅寬mm working width | 400 |
發動機輸出傳動方式 driving mode | 離合式傳動clutch |
刀輥輸出傳動方式 Knife roll driving mode | 齒輪傳動 gear |
扶把調整幅度（垂直方向）adjustment range of the handlebar(vertical direction) | 40° |
刀輥設計轉速r/min Designed speed of the knife roll | 230 |
刀輥最大回轉半徑mm Max turning radius of the knife roll | 140 |
刀輥總安裝刀數Total number of knives on the knife roll | 16 |
旋耕刀型號 Rotary blade type | RT140 |
主離合器型式 Main clutch type | 離心式摩擦片Centrifugal friction plate |
主離合器狀態 Main clutch status | 常開normally open |
產品特點Productcharacteristics：
1、結構緊湊、重量輕便、方便搬運。
Compactstructure, light weight and easy to carry.
2、操作輕便靈活、功能多樣化、適應性強。
Easy operation,diversified function and strong adaptability.
3、馬力大、油耗低、工作可靠、機械簡易耐用、維修方便。
High-powered,low fuel consumption, reliable competence, simple but durable, convenientmaintenance.
4、齒輪箱采用2級齒輪減速，并且齒輪材料為高強度合金，使得整個機器傳動更加平穩，使用壽命更長。
Two-stagereduction, high-strength alloy gearbox, more stable, longer durability.
5、行走輪可拆卸，根據不同地況使用不同行走輪，高效，快捷。
Applicableto different ground conditions, with disassembled walking wheels, efficient andfast.
6、采用無檔位操作，常開式離合，松手即停、安全性更高。
Nogear operation, normal- open clutch, stop immediately after release, withhigher safety.
7、手把高度可調，能夠適應不同身高作業人員。
Handlebarheight adjustable, applicable to different operators.
