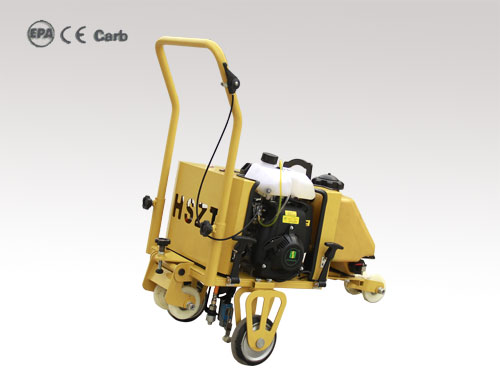

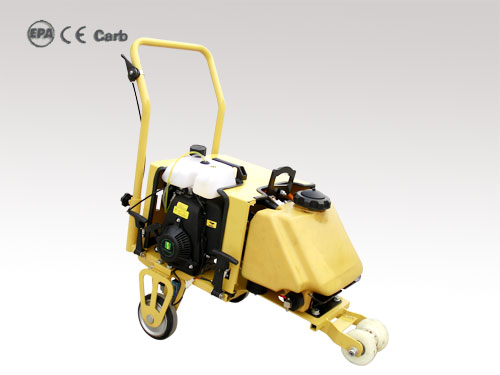

    Product Name:Railway Bolt Lubrication

    1、           Main Feature

    Improve the level of mechanization of maintenance and will play a very good role in promoting daily maintenance of rail parts. Not only working efficiency greatly improved, greatly reducing the labor intensity of the operator, but also save spending of oil, no pollution to the ballast, meet current energy saving and environmental protection requirements;

    The hydraulic pump powered by gasoline engine to work forcefully and conveniently. Could Substitute for the artificial handle operation, effect is more equality, improve work efficiency 6 times, reduce cost 3 times, anti-rust time up to more than 3 months; Compact and reasonable structure, beautiful appearance, easy operation and simple operation Safe and convenient to use

    2、Application

    Application in railway line laying of various types of concrete sleeper bolts oiling maintenance operations, especially can be used in the absence of external connected to the power supply, without external power pneumatic occasions to track bolts for oiling and maintenance;

    3、Operation Principle

    Gasoline engine driven hydraulic pump, anticorrosive oil mixture is scattered by the atomization spray evenly to the sleepers stand bolt of oiling operation.

    4、Technical Data:

    Name

    Railway Bolt Lubrication machine

    Engine

    Engine Model

    142F

    Engine Type

    One cylinder, air cool, 4 stroke

    displacement   ml

    49

    power kW /r/min

    1.2/6800

    consumption g/kW·h

    ≤480

    Net weight     kg

    ≤45

    Working efficiency pcs/min

    240

    Idle speed  r/min

    2500±150

    Working speed  r/min

    4500±200

    Fuel tank L

    1.2

    Oil vs grease Rate

    2:1(2 sprayers)

    Lubrication tank  L

    10

    Noise dB

    ≦100

    size mm

    950×500×900

    Packing size

    870x560x735
